Motor Y Cueda

Polyphonic electro-acoustic instrument that explores all the hidden voices of an individual string
Tags: Music, Design, Hardware, Fabrication

About the project

Motor Y Cuerda (Spanish) - "Motor and String"

Performance based on a polyphonic hand-built electro-acoustic instrument.

There is a worldwide movement that seeks to create new and interesting interfaces for musical expression called NIME (New Interfaces for Musical Expression). This movement is pursued by different kinds of people: researchers, musicians, designers and engineers.

The magnificent world of music was revealed to me as a kid through the piano. By learning the works of the greatest composers of all time, both classical and contemporary, I've fallen in love with the abstraction of sound waves and the wide range of feelings they can make us feel. Motor Y Cuerda was all about the relationship between human and machine, about computer-less music and about the emotional and physical investment we need to put into making things that are personal in this fast-paced and sometimes facile world.

I have always wanted to design and build my own music instrument. Before starting this project, I had experimented with different mediums for creating electronic and digital music. R-Synth is a web-based synthesizer that randomizes 15 parameters with the click of a button, Orientron is a electronic instrument that converts wrist movements into music and Falcon3 Sampler is an explorative tangible music sampler that works with acrylic punch cards. These are fun projects that I'm grateful to have worked on, but for Motor y Cuerda I wanted to explore deeper, and build something acoustic.

Acoustic instruments, as opposed to electronic or digital instruments, depend on the actual material of the instrument and the dynamic they are played with. This makes the timbre, or the voice of the instrument, depend on physical phenomenons, while electronic music depends on an algorithm, preset, or programmable signal. There is less control and less predictability with acoustic instruments – this made the project very challenging and fun.

Creative process

Tools

Low E Guitar String

DC Motors

Diverse Wood

Arduino

Fusion 360

EagleCAD

Drill Press

Belt Sander

Chop Saw

CNC Router

I started the project by learning as much as possible in materials, acoustics, air dynamics and construction techniques. It became clear very early on that I lacked crucial knowledge, so I looked for instruments that were innovative during the time of their inception, specifically for those that didn't use computers for the generation of a tone and landed on the magical world of electro-acoustic instruments.

These instruments use technology and engineering principles to capture and amplify the natural voice of physical, acoustic objects – think of an electric guitar and how it picks up the natural vibration of a physical string. A lot of work has been done by extremely talented and bright individuals, specifically during the previous century. Some of these creations were commercial successes, and some of them were a stepping stone for others developments. I was extremely inspired by many if not most of the instruments created between 1900-1970, but some notable mentions are the Hammond Organ, Mellotron and Rhodes Piano. I recommend visiting this site and learning about the magical devices people were building without the use of computers. I was also introduced to the work of Andy Cavatorta, an American "sculptor that uses robotics and sound" and had the pleasure of meeting him during this process.

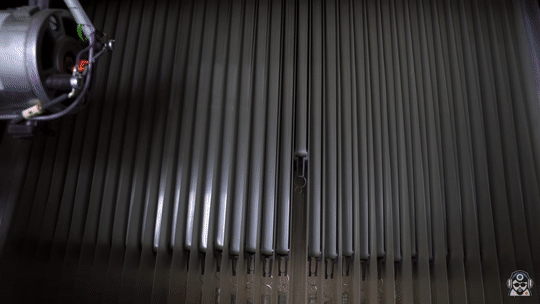

Tape mechanism of a Mellotron. Each note has a pre-recorded sample and when a key is pressed, the tape is engaged and played. - by Doctor Mix

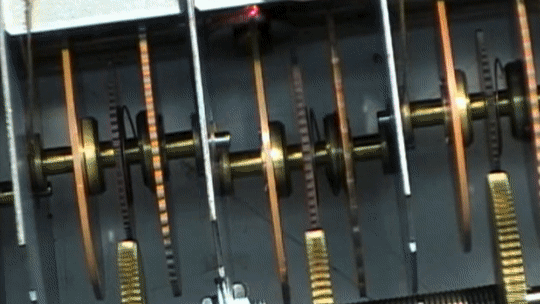

Tone-wheel tone generation mechanism. The 1935 Hammond Organ used iron gears and inductors to produce electric tones.

Building techniques

Wood is the most used material for acoustic instruments due to its amazing sound conduction properties. Looking at the tools and equipment I had at my disposal, I was tempted to design and create this instrument using plywood and a CNC router. During my research process, I visited Paul Nieto, founder and owner of Guitartech – a guitar manufacturing shop and store on 14th Street in Manhattan. He taught me about the intricacies of guitar manufacturing, specifically shape and materials, and I learned from him that plywood is a bad choice for resonant bodies. Plywood is formed of various layers of wood glued together. Turns out, that glue stops vibrations and prohibits lower sounds to be heard. That meant that vibrating parts had to be built with natural tone-woods.

Nevertheless, I decided to build a first prototype with what I had. I was heavily inspired by late 1800's and early 1900's inventors such as Thomas Edison and Nikola Tesla. I wanted to capture the aesthetic of the time, and attempt to create an instrument that might've been created during those years. Brutalism, the architectural movement characteristic for blocky design and exposed structure was also a big part of my design inspiration.



First instrument

The first thing that had to be resolved was how the sound was going to be produced. I looked to capture a natural but diverse range of sound, and form a musical system around it, so some degree of melody, harmony and percussion needed to exist. Many ideas came to mind: boiling teapots, glass shattering and air chambers (similar to an air-based instrument). In the end, I landed on traditional guitar, cello and violin strings.

I found the Hurdy Gurdy by looking at instruments that were created centuries ago and instantly felt inspired to build upon it. The spinning wheel made me wonder how could it be augmented with today's technology. I spent some time experimenting with violin strings and wooden wheels that I made using a CNC and hole-saw attached to DC motors.

Hurdy Gurdy, a hand-cranked medieval instrument that works by rubbing a rosin-covered wheel against strings.

brief demo of sound produced with a wooden wheel, dc motor and violin string

Sound experiment to find the best ways of producing sound with a DC motor, a wooden wheel and a violin string.

Once I had a reliable way of producing sound I set myself to device a way to change the pitch. It was important to do a reality check and explore different ways of pinching a string to change its pitch manually. Ideation, testing and iteration led me to a rolling-pincher mechanism that worked well enough. The chassis was made of a block of hardwood that was lying around, the supports were laser-cut and the rollers were designed using Fusion360 and 3D printed.

Sketch of the main concept. Angular force as an input, transferred to a wheel that rubs a string. A rolling pincher goes up and down on a track.

Rolling-pincher mechanism. Wood block as chassis runs on a track. Acrylic laser-cut supports (black) hold 3D printed rollers (white).

First prototype. Primary structure containing string, track and roller. Top structure consists of 2 violin strings that add more variety to the range. Stepper motor controlled by Arduino.

Learnings from first instrument

I performed a 5-minute piece with the first instrument in front of 30 people and the response was great. The natural screechy sound seemed to convey the stress I was hoping to and the audience enjoyed the dynamics of it. However, there were important parts missing: the sound registry was too high, I could only play one note at the time and instrument was quite small, so whatever I was doing on stage wouldn't translate to an audience larger than 30 people. The stepper motor I initially used was giving very slow RPMs (as steppers do), the circuit was fragile, the rolling mechanism had alignment issues and the whole thing was on a tabletop facing me instead of the audience.

With these learnings, I started the second instrument.

Design of the second instrument

The original sound character I set myself to achieve was definitely lower and more layered than the one the first instrument was producing. After conducting further research on acoustics, I concluded that the resonant body was too rigid and it was only allowing high frequencies. It also had 'parasite' frequencies introduced by the not-so-great rolling mechanism.

All the research and experimentation led me to point were the components were clear: A string, a fretboard and a resonance box. These are present in almost all string instruments, but I wanted to push the design to a bolder direction and avoid making another guitar.

Form exploration of the components. Tried different configurations for the chamber and fretboard, and eventually arrived at the 'exploded' form factor.

Once the form was found, I spent some time improving the rolling-pincher mechanism. The second iteration was designed to be more stable and to roll on a horizontal track instead of a vertical one. I used a triangular chassis, shoulder screws and CNC'd wooden wheels to keep tolerances as low as possible. Each shoulder screw functions as an axle for the wheels, and 1/16" plastic washers allow to calibrate the device when deformation from the string's tension is introduced – it uses 22 different parts to achieve a firm, comfortable and predictable motion.

Neck and roller V2. The roller was designed around the 3/4" neck.

Built roller V2. Design makes it adjustable and gives enough control when playing the instrument.

Construction

The construction of the instrument needed both traditional woodworking methods as well as digital fabrication such as a CNC, laser cutter and 3D printer.

The resonance chamber was constructed with a birch frame and tone-wood faces. This gives sufficient structure without dampening low frequencies. The suspended fretboard was cut using a CNC to achieve the necessary precision that the roller needed. The string is held up from two points: a string peg (used one from a traditional guitar) and the bridge. The bridge was made from a wooden dowel and glued to the face of the chamber. Finally, the string nut structure was built using different woods, a drill press & band saw, and uses an adjustable set screw mechanism for calibrations and adjustments.

Resonance chamber being built with a birch frame and tone-wood faces. Attached to instrument's surface using a plate made out of plywood and 4 threaded inserts.

Support for the string peg structure. Vertical wooden shaft goes through to allow vertical adjustments and threaded insert works as guide for set screw.

Assembled string peg structure. Shafts and set screw mounted. I call this thing the "rooster".

Percussion

One of the main weaknesses from the first instrument built was the lack of a percussive element. The melodic component was there, but I was lacking a way of carrying a beat and tempo to create a more engaging experience for the audience. I designed a complementary instrument that produces a variable-BPM beat.

CAD assembly of the percussive instrument. Used it to validate angles, heights and other dimensions before building the actual thing.

Built percussion instrument resting on play-wheel. Used different hardwoods, a 4" dowel and shaft collars.

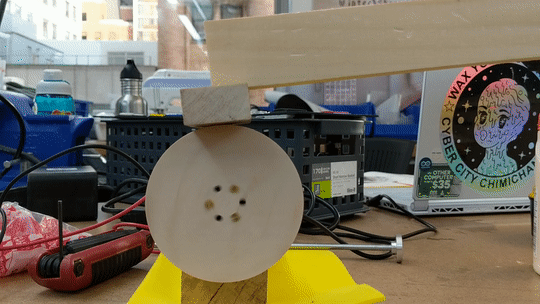

Testing the percussive element. You can see how the top part jumps and rests on the wooden wheel depending on the speed. This creates a musical "beat".

Putting everything together

Once all the components finished drying, I started to see how they come together. By laying everything on a flat surface and looking at it from the top, I was able to gauge different distances between the components, accomplishing a harmonious composition between them.

Top view of the composition between components. This gave me a bette sense of how to space them on the ground plank.

Instrument controller

The instrument has two DC motors that produce different sounds. The tone motor brushes a wooden wheel against a guitar string and the percussive motor hits a wooden plate with a wooden wheel.

The relationship between the motor's speed and the sounds is very direct but also very nuanced. For example, sudden changes in speed on the percussive motor make the structure jump a bit higher, and this might make you skip a beat. For the tone wheel, the pressure with which the performer pushes the wheel against the string, as well as the distance from the bridge also changes the sound.

Since this instrument was meant to be performed live, I needed a clear way of showing the audience how and when the performer changes the speed of the motors. At first, I thought about having a force sensor around the motors – the harder the performer squeezed their hands the faster the motor would go. However, something like that would not be very effective at communicating with the audience.

I iterated a few ideas and decided to go for two big knobs that face the audience. I experimented on Fusion360 with different polygons and found a relationship between two of them that felt harmonious, yet different enough from each other.

Experimenting with different polygons for the knobs using Fusion360.

CAM tool-path and setup for the knobs. The CAM files were created using the Manufacture workspace in Fusion360. Used 4 simple 2D contours for this one.

Final version of the knobs and playwheels together. The controller PCB sits in the back of the knob plate.

The motor controller was designed with an Arduino MKR 1010 because of its size. There are two potentiometers, each one attached to a knob, and two PWM outputs connected to high-speed switching NPN BJT transistors on a saturation configuration. The board was prototyped on a breadboard, then drawn on EagleCAD and milled using the Bantam Tools desktop milling machine (OtherMill).

Schematic and layout files for the board. Created using EagleCAD

Assembled PCB board. Everything is in place and ready for the microcontroller. Used screw terminals to attach the potentiometers, power lines and DC motors

Sound adjustments and practice

The instrument was finished, or at least that's how it seemed to be.

Once I had everything put together, I started discovering the instrument by playing it in total isolation as well as in front of others. I also asked some of my friends who are musicians to play with it and give me their feedback.

The first sounds that came out of the instrument were interesting but too screechy. I investigated this issue, and learned that the wooden wheel needed to be treated. I spent a few hours playing with different sandpapers, trying to shave off any imperfections in the wheel. It was very important that the wheel didn't become completely flat, because that would've removed every parasitic overtone at the fundamental frequency, and ironically, these overtones were what I was chasing to produce.

Instrument discovery  -  Spent countless hours in this room trying to understand the instrument and developing a connection with it.

Joe Baker messing around with it. Really valued his inout as a guitar player.

Music Producer Aarón Moreno experimenting. Taught me how to prepare the instrument for a live performance by using contact mikes and Ableton Live.

Performance

I performed a piece with this instrument during the ITP NIME Show 2019. I felt very grateful of being there and performing together with 15 talented creators.

The show was at the Paper Box venue in Brooklyn and had a 350 people attendance.

Final words

The process of understanding the sound that I was trying to put out into the world, and the interface with which I wanted to do so makes this project one of my favorites so far. I was lucky enough to be able to combine all the disciplines I love: music, design, hardware and mechanical design.

I had never performed in front of an audience like this one before. It was a very open and strong experience, and I had a great time doing it.

The ~4 months that I invested into this instrument were delightful. I felt very relaxed while working on it, and due to the intensive manual work that this required, I felt a big connection with myself and with music. Thank to the support of my peers and a lot of hard work I was able to create my very own acoustic instrument. This is something that will make me happy for a long time.

Thank you for reading.
